Dual 6" active line array speaker with built-in DSP powered module. Frequency response: 70Hz-18kHz (±3dB). Sensitivity: 100dB. Rated power: 300W. Max SPL: 124dB. Horizontal coverage: 110°. Birch plywood enclosure. 44mm tweeter + dual 120mm woofers.
China conference AV system manufacturer · OEM / ODM · CE / RoHS / FCC certified
Speaker Specifications Parameter Specification System Type Dual 6" Line Array Frequency Range 60Hz - 20KHz Frequency Response 70Hz - 18kHz (±3dB) Sensitivity 100dB SPL 1w/1m Impedance 16Ω Rated Power 300W Max SPL 124dB SPL Coverage (Horizontal) 110° Coverage (Vertical) Depends on array configuration Tweeter 44mm Voice Coil / 120mm Magnet Woofer 2×120mm Magnet / 50mm Voice Coil Enclosure 15mm Birch Plywood Input Connectors 2×Neutrik® NL4MP Dimensions (H×W×D) 204mm × 515mm × 298mm Net Weight 15kg Powered Module Specifications Parameter Specification 8Ω Output Power 500W×100W 4Ω Output Power 700W×150W DSP Max Input Dynamic 10dBU THD <0.02% Frequency Response 20Hz - 20kHz, ±2dB Input Impedance 20k / 10k Input Sensitivity 4dBU S/N Ratio (20Hz-20kHz, 4Ω) >100dB Crosstalk (1kHz, 4Ω) >70dB Damping Factor (10-400Hz, 8Ω) >300 Output Stage Class D Protection Short Circuit, DC Output, Over-Temperature, Overload Indicators Clip / Signal / Power Power-on Delay 3S Input Connector XLR Balanced Power Voltage 90V ~ 130VAC Module Dimensions (W×D×H) 335mm × 110mm × 60mm Module Net Weight 1.4kg
卡达斯 COUDUS Dual 6" Active Line Array Speaker (model TK-YX206Y) is a Active Speaker / Powered Speaker product from 卡达斯 COUDUS, built for meeting rooms, lecture halls, command centers and education venues. Dual 6" active line array speaker with built-in DSP powered module. Frequency response: 70Hz-18kHz (±3dB). Sensitivity: 100dB. Rated power: 300W. Max SPL: 124dB. Horizontal coverage: 110°. Birch plywood enclosure. 44mm tweeter + dual 120mm woofers.

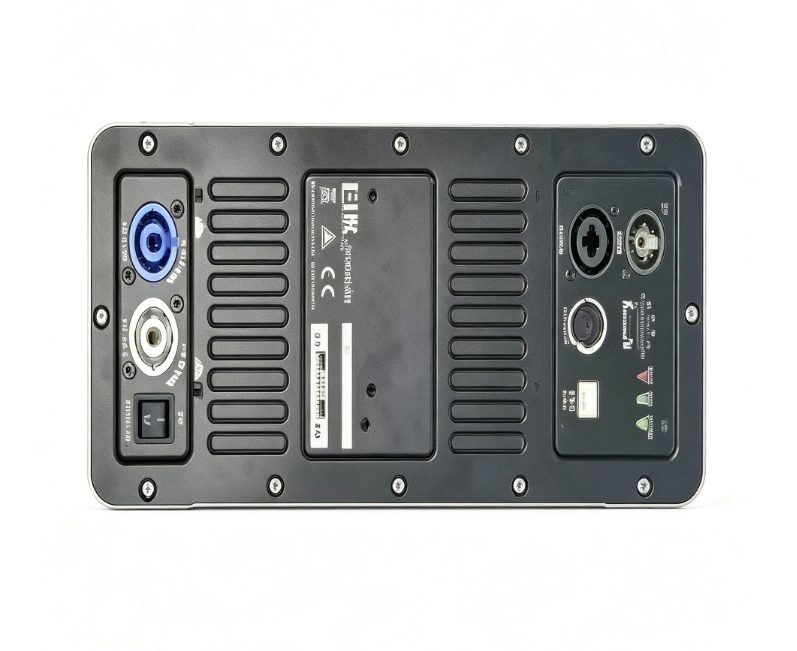

This dual 6" active line array speaker features a 15mm birch plywood enclosure with a 44mm voice coil/120mm magnet tweeter and dual 120mm magnet/50mm voice coil woofers. Rated power: 300W with maximum SPL of 124dB. Frequency range: 60Hz-20kHz, response: 70Hz-18kHz (±3dB). Horizontal coverage: 110°—vertical coverage varies with array configuration for different venue requirements. Built-in DSP-powered module delivers 500W×100W at 8Ω and 700W×150W at 4Ω. Class D amplifier stage achieves over 90% efficiency with low heat generation. Comprehensive protection including short circuit, DC output, over-temperature, and overload for safe, reliable operation. DSP provides precise crossover, EQ, and limiting for optimized system performance. S/N ratio >100dB (20Hz-20kHz, 4Ω), crosstalk separation >70dB (1kHz, 4Ω), damping factor >300 (10-400Hz, 8Ω) for tight, punchy bass response. XLR balanced inputs ensure stable signal transmission. Power supply: 90V~130VAC for global compatibility. Module dimensions: 335×110×60mm, net weight: 1.4kg for easy installation and maintenance. Ideal for small to medium performances, conference sound reinforcement, lecture halls, and multi-function venues.
The MOQ for the 卡达斯 COUDUS Dual 6" Active Line Array Speaker (model TK-YX206Y) is 1 unit. For mixed-model orders, project tenders or OEM/ODM runs the MOQ is negotiable — send COUDUS your target quantity and destination market for a tailored quotation.
Yes. 卡达斯 COUDUS supports OEM/ODM on the Dual 6" Active Line Array Speaker, including logo printing, housing finish and colour, packaging artwork, multilingual manuals, and firmware/UI branding. Share your specification and we will confirm feasibility, tooling cost and sample lead time.
In-stock 卡达斯 COUDUS Active Speaker / Powered Speaker typically ships within 7–15 working days after payment. Bulk and customized orders usually take 20–30 working days depending on quantity and configuration. Exact lead time is confirmed on your proforma invoice.
Yes. 卡达斯 COUDUS provides a 12-month manufacturer warranty covering defects in materials and workmanship, plus lifetime remote technical support. Extended warranty and spare-part packages are available for project orders — the exact terms are stated in your quotation.
Yes, sample orders are supported. Testing a sample lets you verify audio performance, build quality, finish and system compatibility before committing to volume. Sample cost is normally credited against your subsequent bulk order.
卡达斯 COUDUS builds the Dual 6" Active Line Array Speaker under a documented quality-control process, and certification documents (CE, RoHS, FCC and others, where applicable) can be provided on request for your destination market. Tell us the target country and we will supply the relevant paperwork.
卡达斯 COUDUS designs the Dual 6" Active Line Array Speaker with standard professional interfaces so it integrates with common third-party DSPs, mixers, camera-tracking systems and control platforms. Send us your system diagram or existing equipment list and our engineers will confirm compatibility before you order.
Yes. 卡达斯 COUDUS supplies wiring diagrams, mounting templates and configuration guides with every Active Speaker / Powered Speaker order, and our engineers provide remote commissioning assistance by video call. On-site support and integrator training can be arranged for large projects.
