48V幻象電源供電的四頭陣列 podium 演講麥克風，配備心形電容音頭。豐富的中低頻響應，提供清晰飽滿的人聲重現。四頭設計提供超寬拾音範圍。麥克風頭與鵝頸均可前後調整，靈活定位。有效抑制環境噪音。適用於大型演講廳、政府會議廳及高階 podium。 - 型號：TK-MIC100 - 頻率響應：50Hz-18kHz - 靈敏度：-45dB±3dB (0dB=1V/Pa at 1kHz) - 輸出阻抗：200Ω - 最大聲壓級：130dB (1kHz at 1% THD) - 電源：48V 幻象電源 - 連接器：3-pin XLR - 尺寸：120mm x 45mm x 45mm - 重量：0.5kg
China conference AV system manufacturer · OEM / ODM · CE / RoHS / FCC certified
參數 規格 換能器類型 電容式（駐極體） 拾音結構 4麥克風頭陣列 指向性 心形 頻率響應 40Hz - 16KHz 靈敏度 -42dB ± 1.5dB（1kHz，0dB=1V/Pa） 輸出阻抗 600Ω ± 20%（1kHz） 總諧波失真 0.9% / 1kHz，94dB SPL 電源 48V幻象電源 開關類型 觸摸開關（超耐用，高抗靜電噪音） LED指示燈 4個紅色LED燈頭 音頻線 7米雙芯屏蔽，XLR母頭至XLR公頭 抗干擾 RFI/EMI屏蔽 重量 4.56kg 顏色 黑色 調整 所有4個麥克風頭及鵝頸可前後樞軸調整

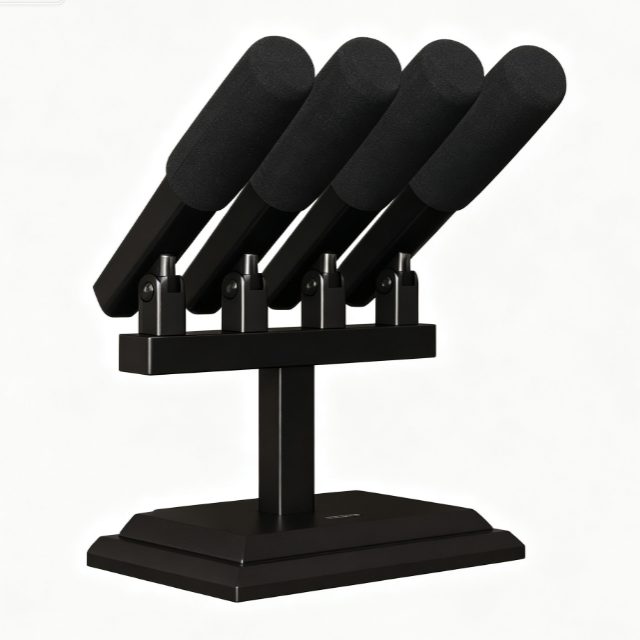

卡达斯 COUDUS 講台4頭陣列式演講麥克風 (model TK-M4) is a 48V 幻象電源會議麥克風 product from 卡达斯 COUDUS, built for meeting rooms, lecture halls, command centers and education venues. 48V phantom powered 4-head array podium speech microphone with cardioid condenser capsules. Rich mid-low frequency response with clear and full vocal reproduction. 4-head design delivers ultra-wide pickup coverage. Both mic heads and goosenecks pivot forward/backward for flexible positioning. Effectively rejects ambient noise. Ideal for large lecture halls, government meeting halls, and premium podiums.
專為大型講台及高規格演講場合設計，此款四頭陣列式演講麥克風配備四個心形電容式拾音頭，以精密陣列配置提供超寬廣的聲音覆蓋範圍，具備豐富飽滿的中低頻響應與清晰的語音重現，有效抑制環境噪音。四個麥克風頭與鵝頸均可前後調整，靈活定位，適應不同身高與姿勢的演講者。配備超耐用、高抗靜電噪音的觸控開關，所有麥克風頭在啟動時會亮起紅色LED指示燈。由48V幻象電源供電，內含一條7公尺雙芯屏蔽XLR線材，具備RFI/EMI抑制功能。四頭陣列配置特別適合大型政府演講廳、議會殿堂、大學禮堂、企業記者會及高階會議講台使用。
The MOQ for the 卡达斯 COUDUS Podium 4-Head Array Speech Microphone (model TK-M4) is 1 unit. For mixed-model orders, project tenders or OEM/ODM runs the MOQ is negotiable — send COUDUS your target quantity and destination market for a tailored quotation.
Yes. 卡达斯 COUDUS supports OEM/ODM on the Podium 4-Head Array Speech Microphone, including logo printing, housing finish and colour, packaging artwork, multilingual manuals, and firmware/UI branding. Share your specification and we will confirm feasibility, tooling cost and sample lead time.
In-stock 卡达斯 COUDUS 48V Phantom Power Conference Microphones typically ships within 7–15 working days after payment. Bulk and customized orders usually take 20–30 working days depending on quantity and configuration. Exact lead time is confirmed on your proforma invoice.
Yes. 卡达斯 COUDUS provides a 12-month manufacturer warranty covering defects in materials and workmanship, plus lifetime remote technical support. Extended warranty and spare-part packages are available for project orders — the exact terms are stated in your quotation.
Yes, sample orders are supported. Testing a sample lets you verify audio performance, build quality, finish and system compatibility before committing to volume. Sample cost is normally credited against your subsequent bulk order.
卡达斯 COUDUS builds the Podium 4-Head Array Speech Microphone under a documented quality-control process, and certification documents (CE, RoHS, FCC and others, where applicable) can be provided on request for your destination market. Tell us the target country and we will supply the relevant paperwork.
卡达斯 COUDUS designs the Podium 4-Head Array Speech Microphone with standard professional interfaces so it integrates with common third-party DSPs, mixers, camera-tracking systems and control platforms. Send us your system diagram or existing equipment list and our engineers will confirm compatibility before you order.
Yes. 卡达斯 COUDUS supplies wiring diagrams, mounting templates and configuration guides with every 48V Phantom Power Conference Microphones order, and our engineers provide remote commissioning assistance by video call. On-site support and integrator training can be arranged for large projects.
