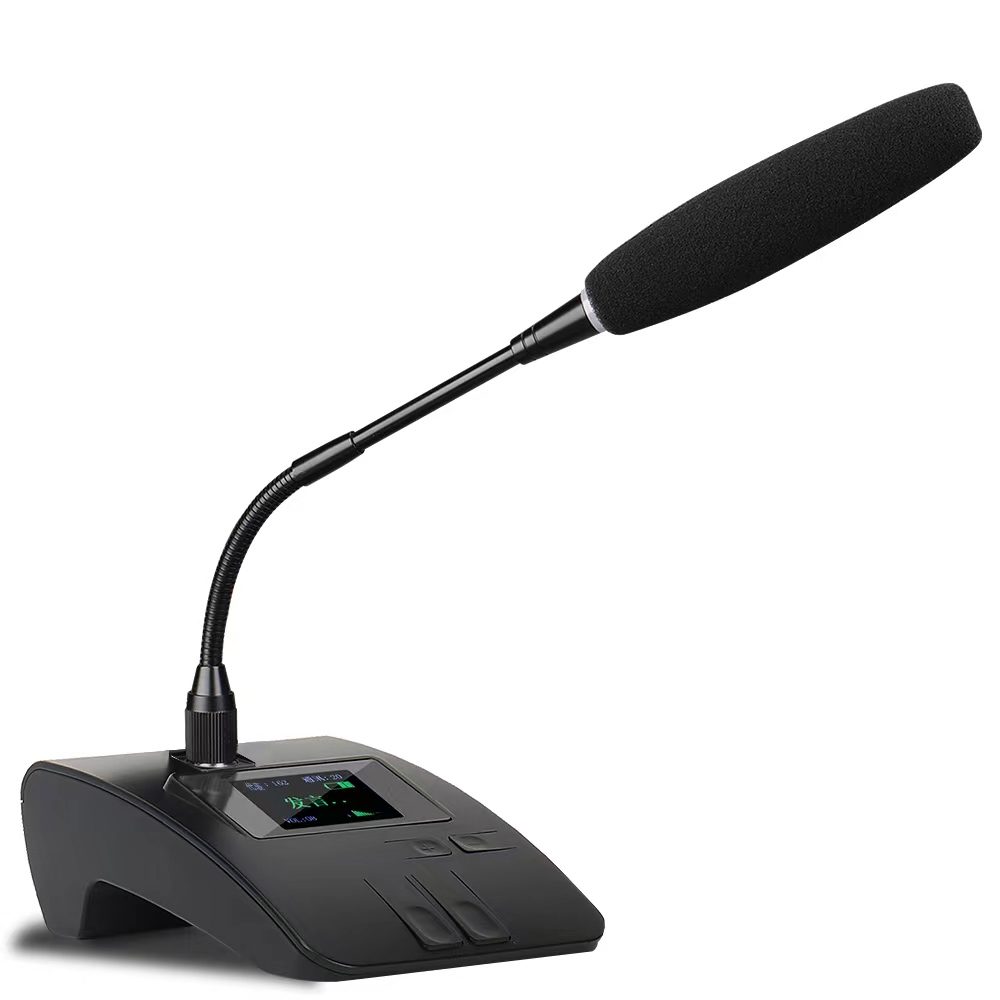

UHF 무선 숏 구즈넥 의장 유닛, FSK 변조 방식, 2.4" TFT 컬러 디스플레이, 20채널 × 168유닛 지원, 의장 우선 기능, 숏 구즈넥 디자인(30cm 표준/200mm/280mm 옵션), 내장 충전, 8-10시간 배터리 수명, 60m 커버리지 반경.
China conference AV system manufacturer · OEM / ODM · CE / RoHS / FCC certified
파라미터 사양 제품명 숏 구즈넥 무선 회의용 마이크 (의장 유닛) 통신 UHF 무선 변조 FSK 반송파 주파수 640MHz - 690MHz 대역폭 30MHz 최대 편이 ±45KHz 고조파 방사 < -65dBm RF 출력 전력 15mW 주파수 응답 30Hz - 20KHz 트랜스듀서 유형 콘덴서, 단일 지향성/초지향성 커버리지 반경 60m (실내) 기준 픽업 거리 30cm - 60cm 디스플레이 2.4" TFT 컬러, 240RGB×320DOTS 채널 수 최대 20 채널당 유닛 수 ≦168 의장 유닛 우선 기능 볼륨 조절 개별 제어 (옵션) 마이크 샤프트 길이 200mm/280mm/30mm (표준); 구즈넥 420mm (옵션) 유닛 크기 (W×D×H) 180mm × 120mm × 60mm (샤프트 제외) 유닛 무게 (샤프트 포함) 1.0 kg 배터리 유형 3 × 1.5V AA 배터리 / NiMH (옵션) 전류 소비 < 150mA 연속 통화 시간 약 8-10시간 대기 시간 >20시간 충전 기능 내장 (전용 충전기 및 NiMH 배터리 필요) 작동 온도 -10℃ ~ 40℃
卡达斯 COUDUS 숏 구즈넥 무선 회의 마이크 (의장 유닛/UHF/FSK) (model TK-830) is a 유선 및 무선 회의 시스템 product from 卡达斯 COUDUS, built for meeting rooms, lecture halls, command centers and education venues. UHF wireless short gooseneck chairman unit with FSK modulation, 2.4" TFT color display, supports 20 channels × 168 units, chairman priority function, short gooseneck design (30cm standard/200mm/280mm optional), built-in charging, 8-10 hours battery life, 60m coverage radius.
이 단형 구스넥 무선 회의 의장 유닛은 UHF 대역에서 FSK 변조 방식으로 작동하며, 반송파 주파수는 640-690MHz, 대역폭은 30MHz입니다. 명확한 음성 픽업을 위해 콘덴서 무지향성/초지향성 마이크 요소를 갖추고 있으며, 기준 거리는 30-60cm입니다. 고휘도, 고대비, 넓은 시야각을 제공하는 2.4인치 TFT 컬러 디스플레이(240RGB×320DOTS)를 장착하여 회의 모드, 날짜, 유닛 식별 정보를 명확하게 표시합니다. 기계적 클릭 소음이 없는 무음 터치 버튼으로 수명이 길고 방수 설계가 적용되었습니다. 의장 유닛은 우선 기능을 통해 마이크를 활성화하거나 발언 중인 유닛을 음소거/비활성화하여 질서 있는 회의 관리를 보장합니다. 마이크별 개별 볼륨 조절이 가능합니다. 최대 20개 채널을 지원하며 채널당 168개 유닛을 지원하고, 모든 채널에서 주파수 응답은 최대 30Hz-20kHz입니다. 선택적 소프트웨어 모듈을 통해 제어, 녹음, 카메라 추적 기능과 호환됩니다. 실내 커버리지 반경은 60미터입니다. 초저전력 소비로 연속 통화 시간 10시간 이상, 대기 시간 20시간 이상을 제공합니다. 내장 충전 기능을 갖추고 있으며 AA 배터리를 지원하고, 선택 사양으로 공장 NiMH 배터리와 스마트 충전기를 제공합니다. 컴팩트한 단형 구스넥 디자인으로 책상 공간을 절약하며, 임원 회의실, 강당 및 기타 전문 회의 장소에 이상적입니다. 국가 공인 제3자 품질 검사 기관의 인증을 받았습니다.
The MOQ for the 卡达斯 COUDUS Short Gooseneck Wireless Conference Microphone (Chairman Unit/UHF/FSK) (model TK-830) is 1 unit. For mixed-model orders, project tenders or OEM/ODM runs the MOQ is negotiable — send COUDUS your target quantity and destination market for a tailored quotation.
Yes. 卡达斯 COUDUS supports OEM/ODM on the Short Gooseneck Wireless Conference Microphone (Chairman Unit/UHF/FSK), including logo printing, housing finish and colour, packaging artwork, multilingual manuals, and firmware/UI branding. Share your specification and we will confirm feasibility, tooling cost and sample lead time.
In-stock 卡达斯 COUDUS Wired & Wireless Conference System typically ships within 7–15 working days after payment. Bulk and customized orders usually take 20–30 working days depending on quantity and configuration. Exact lead time is confirmed on your proforma invoice.
Yes. 卡达斯 COUDUS provides a 12-month manufacturer warranty covering defects in materials and workmanship, plus lifetime remote technical support. Extended warranty and spare-part packages are available for project orders — the exact terms are stated in your quotation.
Yes, sample orders are supported. Testing a sample lets you verify audio performance, build quality, finish and system compatibility before committing to volume. Sample cost is normally credited against your subsequent bulk order.
卡达斯 COUDUS builds the Short Gooseneck Wireless Conference Microphone (Chairman Unit/UHF/FSK) under a documented quality-control process, and certification documents (CE, RoHS, FCC and others, where applicable) can be provided on request for your destination market. Tell us the target country and we will supply the relevant paperwork.
卡达斯 COUDUS designs the Short Gooseneck Wireless Conference Microphone (Chairman Unit/UHF/FSK) with standard professional interfaces so it integrates with common third-party DSPs, mixers, camera-tracking systems and control platforms. Send us your system diagram or existing equipment list and our engineers will confirm compatibility before you order.
Yes. 卡达斯 COUDUS supplies wiring diagrams, mounting templates and configuration guides with every Wired & Wireless Conference System order, and our engineers provide remote commissioning assistance by video call. On-site support and integrator training can be arranged for large projects.
“COUDUS 무선 디지털 회의 시스템은 2년 넘게 저희 12개 회의실에서 안정적으로 운영되어 왔습니다 — 선명한 음질, 강력한 안티인터퍼런스, 그리고 빠른 OEM 맞춤 제작. 신뢰할 수 있는 회의 시스템 제조업체입니다.”
“구즈넥 회의용 마이크는 견고하게 제작되었고, 완전한 CE 인증을 받았으며, 제때 납품되었고, 사후 기술 지원도 신속합니다. 중동 지역 통합업체로서 우리는 제조사의 납품 신뢰성을 높이 평가합니다.”
